The Ball Pressure Test Apparatus is used to check the integrity of dielectric material with respect to resistance to elevated operating temperature. The Ball Pressure Test Apparatus model BP 21 takes care of this testing useful for insulator manufacturers and other electro-technical manufacturers who use insulating material in their electrical appliances. The BP21 is made of stainless steel for long life.
SCR ELEKTRONIKS focuses on designing a solution around the end use at her customer. Instead of offering a standard instrument for a specific task, we have an approach of customizing the test bench to target the specific goals of the process or test procedure. Our measurement instruments, test modules, electrical power systems & software libraries are developed with this vision, thereby reducing the test system’s time-to-deploy. Cord Grip Test Apparatus for testing effectiveness of the retention in flexible cables.

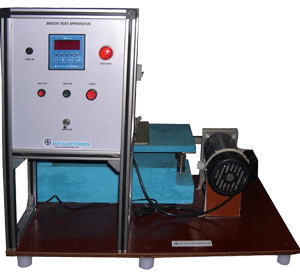

The circuit breaker is secured to the vertical board in such a way that the distance of horizontal axis of the sample is 180 mm from the platform the vertical board being in, so fixed that the distance of the mounting surface is 200 mm from the hinge.
On the surface, opposite the mounting surface of the circuit breaker, a supplement mass is fixed so that the static force on the metal stop – plate is 25 N in order to ensure that the moment of inertia of the complete system is substantially constant.
SCR ELEKTRONIKS focuses on designing a solution around the end use at her customer. Instead of offering a standard instrument for a specific task, we have an approach of customizing the test bench to target the specific goals of the process or test procedure. Our measurement instruments, test modules, electrical power systems & software libraries are developed with this vision, thereby reducing the test system’s time-to-deploy.
