Endurance Test Setup for Sockets
The SCR Elektroniks 3 station Socket Endurance Test Bench is designed to verify the endurance testing of sockets as per IEC 60884, IS 1293 and BS 1363. Typical sockets ratings covered are for the entire range (typically 6 – 32 A) for both 3 phase and single phase loads. The tests included (that can be customized) are as follows:
1. Normal Operation (Referred to as Cl 21 in IEC 60884, Cl 21 in IS 1293 and Cl 18 in BS 1363)2. Making and Breaking Capacity (Referred to as Cl 20 in IEC 60884, Cl 20 in IS 1293 and Cl 17 in BS 1363)2. Making and Breaking Capacity (Referred to as Cl 20 in IEC 60884, Cl 20 in IS 1293 and Cl 17 in BS 1363)
-

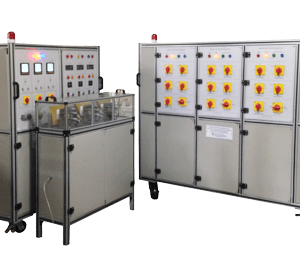

Endurance Test Setup for Switches
The SCR Elektroniks 3 station Switch Endurance Test Bench is designed to verify the endurance testing of household and rocker switches as per IEC 60669, IS 3854 and BS EN 60669. Typical switch ratings covered are for the entire range (typically 6 – 45 A) for both 3 phase and single phase loads. The tests included (that can be customized) are as follows: 1. Normal Operation (Referred to as Cl 19.1 in IEC 60669, IS 3854 and BS EN 60669) 2. Making and Breaking Capacity (Referred to as Cl 18.1 in IEC 60669, IS 3854 and BS EN 60669) 3. Temperature Rise (Referred to as Cl 17 in IEC 60669, IS 3854 and BS EN 60669) 4. Fluorescent Lamp Load (Referred to as Cl 19.2 in IEC 60669, IS 3854 and BS EN 60669) 5. Tungsten Filament Lamp Load (Referred to as Cl 18.2 in IEC 60669, IS 3854 and BS EN 60669)
-
High Voltage Test Setup for Switches & Sockets
The High voltage tester for routine testing of Switches & Sockets with a specially designed robust fixture to hold ither 20 Nos. switches one way or two way 20 Nos. and 10 Nos. Sockets at a time. The solution comes as a single trolley with easy-to-set test parameters with safety interlocks designed for user safety with respect to electric shock and mechanical fixturing. An advantage of the system is – it gives a high yield (20 Switches OR Sockets are tested in about one minute) thus yielding user safety at a high value for money
-
PLC based Socket Di-Electric Routine Test Bench
The SCR Elektroniks Socket Di-Electric Test Bench is designed to verify the high voltage testing of household sockets as per IEC 60669, IS 1293 and BS EN 60884. The system employs Siemens PLC to carry out the test sequence and test parameter (timing) setting. The di-electric strength test is referred to as Clause 16.2 in the following standards:IEC 608849 BS-EN 60884 IS 1293.The above test can be customized with respect to the test voltage (kV), leakage current measurement (mA), test time, etc.
In addition, there is a continuity test module which helps in checking the conformance of the socket to ensure complete reliability of the switch w r t operation and safety before being shipped out for sale.
-

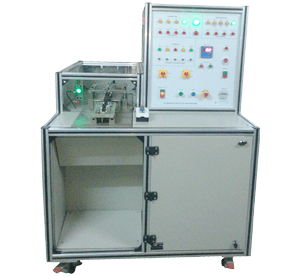

PLC based Switch Di-Electric Routine Test Bench
The SCR Elektroniks Switch Di-Electric Test Bench is designed to verify the high voltage testing of household and rocker switches (SPST and SPDT) as per IEC 60669, IS 3854 and BS EN 60669. The system employs Siemens PLC to carry out the test sequence and test parameter (timing) setting. The di-electric strength test is referred to as Clause 16.2 in the following standards:IEC 60669 BS-EN 60669 IS 3854.The above test can be customized with respect to the test voltage (kV), leakage current measurement (mA), test time, etc. In addition, the test sequence with respect to the terminals of Single pole Single throw switch as well as Single pole Double throw switch on to which dielectric voltage is applied can be pre-programmed.
In addition, there is a continuity test module which helps in checking the conformance of the switch in closed condition to ensure complete reliability of the switch w r t operation and safety before being shipped out for sale.
