| Product Name |

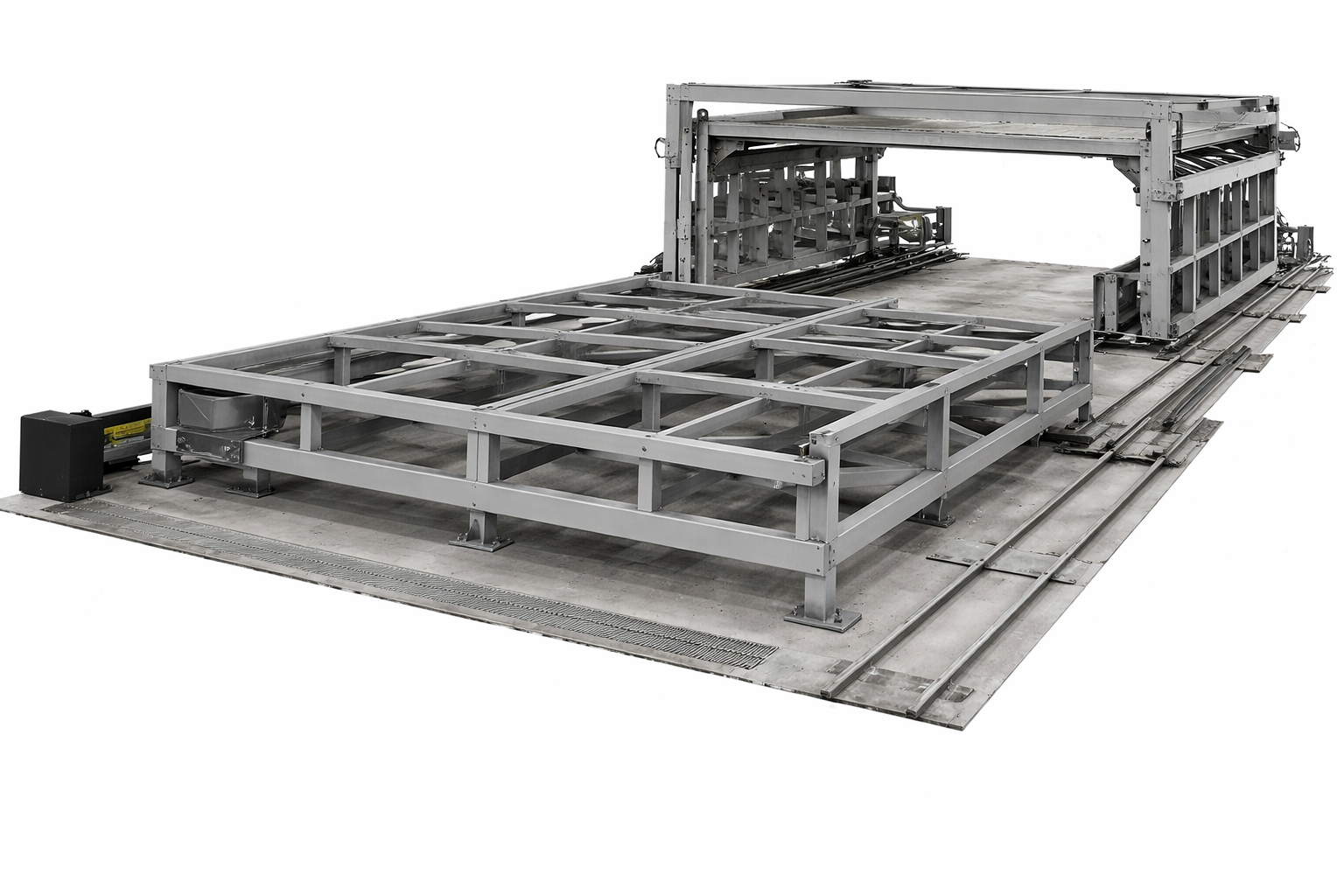

Battery Fire Exposure Test System |
| Application |
Fire resistance evaluation of complete REESS against external fire exposure |
| Compliance Standards |
AIS 156, AIS 038, ECE R100 Rev.3 (Annex 9E), UN 38.3, UL 2580, ISO 12405-3 |
| Test Object |
Complete REESS or representative subsystem |
| Test Procedures |
Phase A: Preheating (60 s) Phase B: Direct Flame Exposure (70 s, extendable +60 s) Phase C: Indirect Flame Exposure (60 s) Phase D: Cooling & Observation (up to 3 hours or ambient temperature) |
| Fuel Pan |
Stainless steel fuel pan Sizes: 2000×1500×150 mm (1 no.) 1000×500×150 mm (1 no.) Custom sizes available |
| Fuel Filling System |
Integrated gasoline filling device |
| Ignition System |
Automatic high-pressure pack ignition / Electrically operated ignition |
| Sample (REESS) Carrier |
Horizontally movable over fuel pan Speed: 3.5–6 m/min Load capacity: up to 2000 kg Carrier size: ≥2200×1800×1000 mm (customizable) |
| Refractory Brick Carrier |
Horizontally movable Speed: 3.5–6 m/min |
| Refractory Bricks |
Size: 240×120×70 mm 15 holes (Ø30 mm) + 6 cut-outs (Ø30 mm) as per ECE R100 |
| Extinguishing Screen |
Movable steel sheet screen for flame extinguishing after Phase C |
| Distance Adjustment |
Gasoline level to test object: Adjustable 300–500 mm (Default 500 mm) |
| Movement Control |
Remote controlled; Auto & Manual modes |
| Control System |
PLC with Touchscreen + Remote Computer Control |
| Data Acquisition |
Real-time data acquisition & recording |
| Video Monitoring |
Integrated video recording & remote monitoring system |
| Temperature Measurement |
Type-K insulated thermocouples for REESS surface temperature |
| Wind Measurement |
Anemometer, measuring range up to 10 m/s |
| Safety & Alarms |
Gas alarm, system alarms, interlocks |
| Power Supply |
415 V, 50 Hz, 3-Phase |
