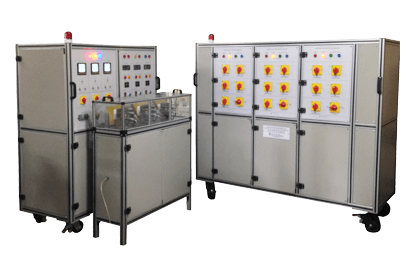

The SCR Elektroniks 3 station Socket Endurance Test Bench is designed to verify the endurance testing of sockets as per IEC 60884, IS 1293 and BS 1363. Typical sockets ratings covered are for the entire range (typically 6 – 32 A) for both 3 phase and single phase loads. The tests included (that can be customized) are as follows:
1. Normal Operation (Referred to as Cl 21 in IEC 60884, Cl 21 in IS 1293 and Cl 18 in BS 1363)2. Making and Breaking Capacity (Referred to as Cl 20 in IEC 60884, Cl 20 in IS 1293 and Cl 17 in BS 1363)2. Making and Breaking Capacity (Referred to as Cl 20 in IEC 60884, Cl 20 in IS 1293 and Cl 17 in BS 1363)
The number of stations, discrete current ratingd, PLC / microcontroller / PC based, tests as per BIS, IEC, BS, etc. can be customized. The system can also be clubbed with switch endurance bench wherein the source and load are common, thus giving a economical solution. The fixtures are designed exactly as per the customer samples.
| Operating pressure | 10 bar |
|---|---|
| Length | 20 m |
| Inside width | 102 mm |
