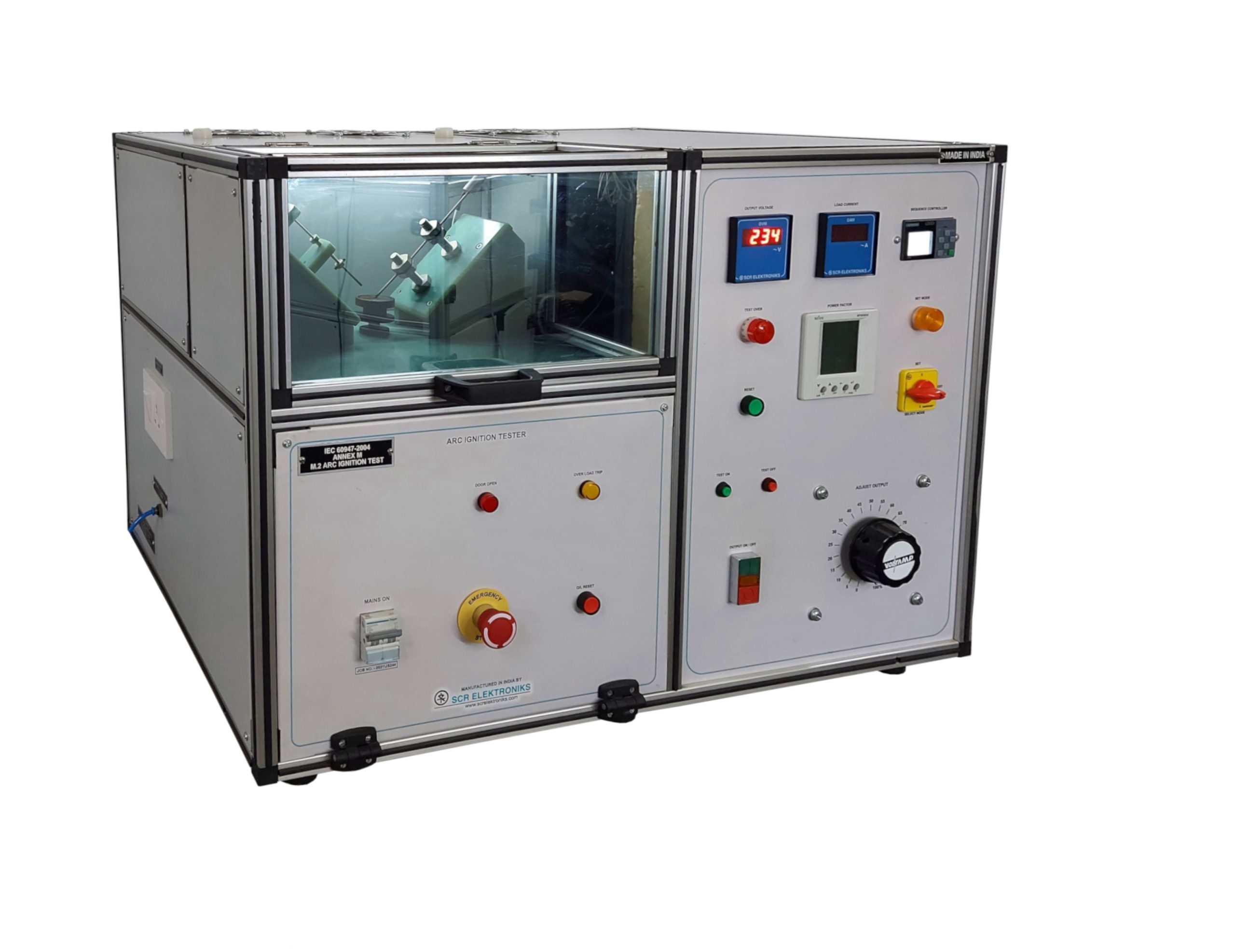

High-Current Arc Ignition Test Machine

High-Current Arc Ignition Test Machine is used for evaluating Ignition Performance Level Category as per UL 746A. Any insulating material should resist electrical arcing when a high current tries to make path between a short distance that is only ‘connected’ by insulating surface. This is a requirement as per IEC 60947 – 1, BS EN 60950 – 1 and IEC 60335 – 2 – 40. Thus, it is a basic electrical safety requirement for all components such as cables, or for that matter any device employing an insulation such as polymers or polycarbonates.



Category: Tags: ,

Description

The SCR ELEKTRONIKS High-Current Arc Ignition Test Machine makes testing as per clause 32 of UL 746A a breeze. It offers a Siemens PLC based control system with all relevant meters on board. It is a cost-effective and yet elegant apparatus for your quality control department. Even the IEC 60947 – 1 clause 8.2.1.1.2 is available as a pre-programmed test procedure – something switchgear manufacturers have come to expect from us. The whole equipment is built in extruded aluminium with multiple fail-safety interlocks.

Additional information

Operating pressure

10 bar
Length

20 m
Inside width

102 mm

Related products

  • Read more

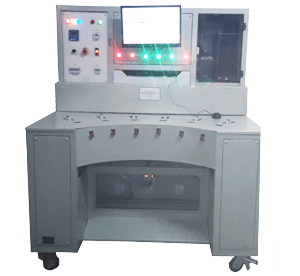

    MCB Thermal Trip Calibration Test Bench

  • Read more

    28 Days Test Bench Single Phase & Three Phase

  • Read more

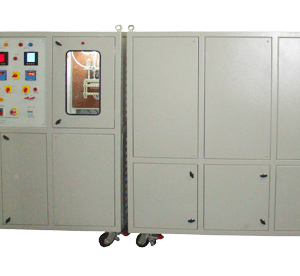

    MCB Endurance Test Bench
