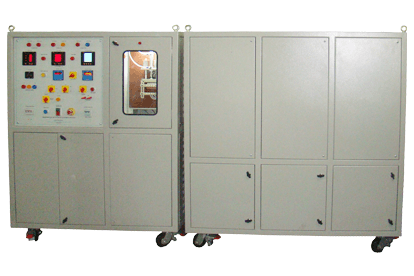

The SCR Elektroniks Endurance Test Bench is designed for electrical and mechanical endurance MCB and RCCB as per clause 9.11 of IEC 60898-1. The source and the load is designed to comply as per the general test conditions specified in Cl 9.11.1. The accompanying pneumatic fixture is designed to hold custom built designs of MCB and RCCB while the microcontroller based timer unit can be configure to follow test procedure summarized in Cl 9.11.2.
The bench can be customized in to 0.5- 63, 6- 63, 0.5 – 32, 0.5 – 125 A current range. Further, the user may choose if he wants a micro-controller based control or a PC / PLC based control. The fixture is designed as per the MCB samples provided. (A similar equipment is offered to test RCCBs and RCBOs for endurance testing that differs in load parameters and fixture design, please refer the relevant section if you are interested)..
| Operating pressure | 10 bar |
|---|---|
| Length | 20 m |
| Inside width | 102 mm |
