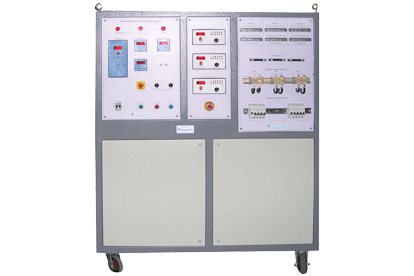

The SCR Elektroniks 3 station MCB Temperature Rise and Power Loss Test Bench is economically designed to verify temperature rise and measure power loss as per clause 9.8 of IEC 60898 with the circuit designed to follow test procedure as per Cl 9.8.2. The temperature rise is measured in accordance with Cl 9.8.3 and 9.8.4 while power loss is measured and verified as per Table 15 of Cl 9.8.5.
The tester can be customized as per the desired range of currents and curves (B,C,D). In addition, where PC based testing is desired, the user may opt for online time vs temperature curves and data logging at a particular current rating. Also, this test can be clubbed in the 28 days test bench for improved economic feasibility.
| Operating pressure | 10 bar |
|---|---|
| Length | 20 m |
| Inside width | 102 mm |
