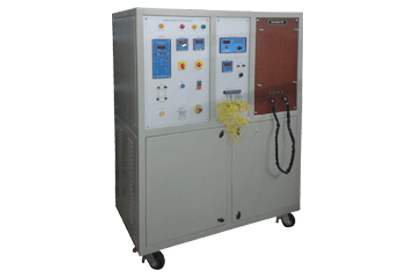

This is a hybrid bench to integrate MCCB over current tripping as well as temperature rise testing as per IEC 60947 and custom based requirements. In addition, temperature rise module helps monitor the temperature rise in various parts of the system in rated current as well as over-current mode. The system comes with user interface software configured in NI LabVIEW making testing of MCCBs complete where thermal curves with current as well as temperature rise can be plotted on a PC. The test jig is flexible such that different MCCBs can be tested and compared for their performance. The bench integrates temperature data logger system with k type Cr-Al temperature probes with both digital and ON-PC online display of temperatures..
The bench is purely customizable as per the R&D needs of the customer with respect to parameters. In addition, additional measurement modules can be added of different makes for precision testing, measurement and compliance.
