Description

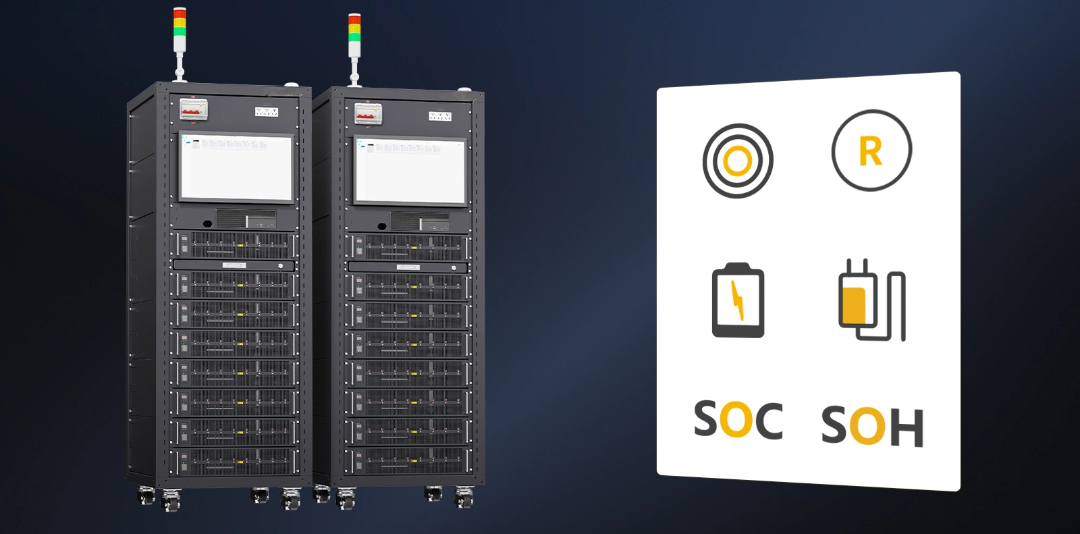

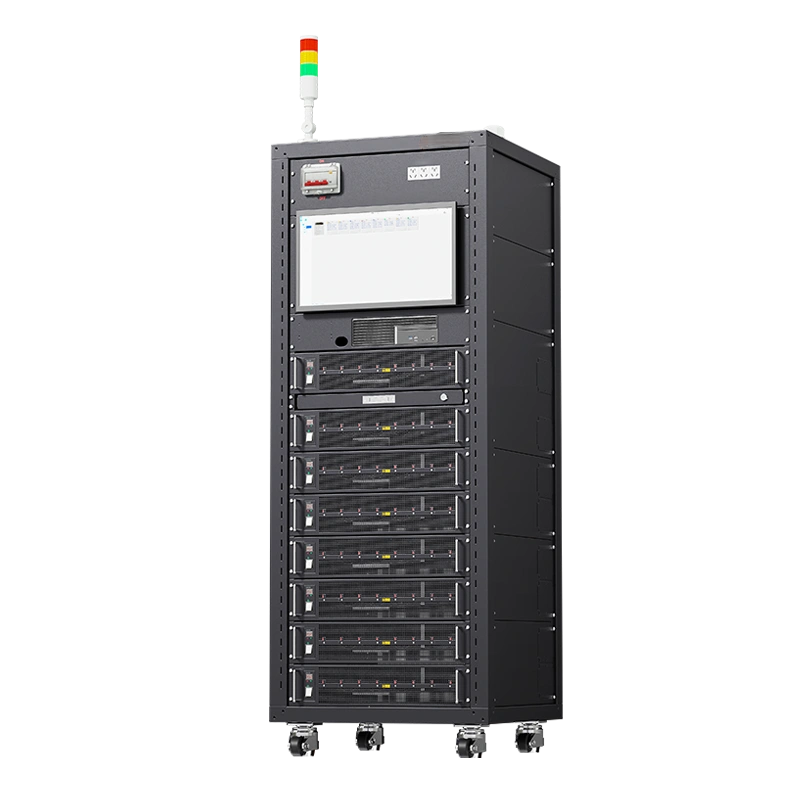

| Equipment name | CE-5000 Battery Testing System |
|---|---|
| Model | CE-5008Q-20V30A-SMB-DS |
| Input power | 7000W |
| Resolution | AD: 16bit; DA: 16bit |
| Voltage | |
| Output range | 2.5V ~ 20V |
| Min discharge voltage | 2.5V |
| Accuracy | ± 0.02% of F.S. |
| Stability | 0.02% of F.S. |
| Current | |
| Output range | Range1: 0.03A; Range2: 0.3A; Range3: 3A; Range4: 30A |
| Accuracy | ± 0.02% of F.S. |
| Minimum output current | 3mA |
| Stability | 0.02% of F.S. |
| Power | |
| Single channel output power | 600W |
| Stability | 0.05% of F.S. |
| Time and data record | |
| Current response time | ≤30ms |
| Working step time | 1 ~ 65535 min/step Time format-00:00:00.000(h, m, s, ms) |
| Frequency | 100Hz |
| Data record | Time Δt: (0.01s ~ 300s) Voltage ΔU: (20mV ~ 20V) Current ΔI: (30mA ~ 30A) |
